Implement Multi-WAN (Dual-WAN) on pfSense 2.6

  • Firewall
  • pfSense
  • 29 August 2025 at 11:09 UTC
  • InformatiWeb
  • 3/3
Previous page

6. View graphs for network traffic

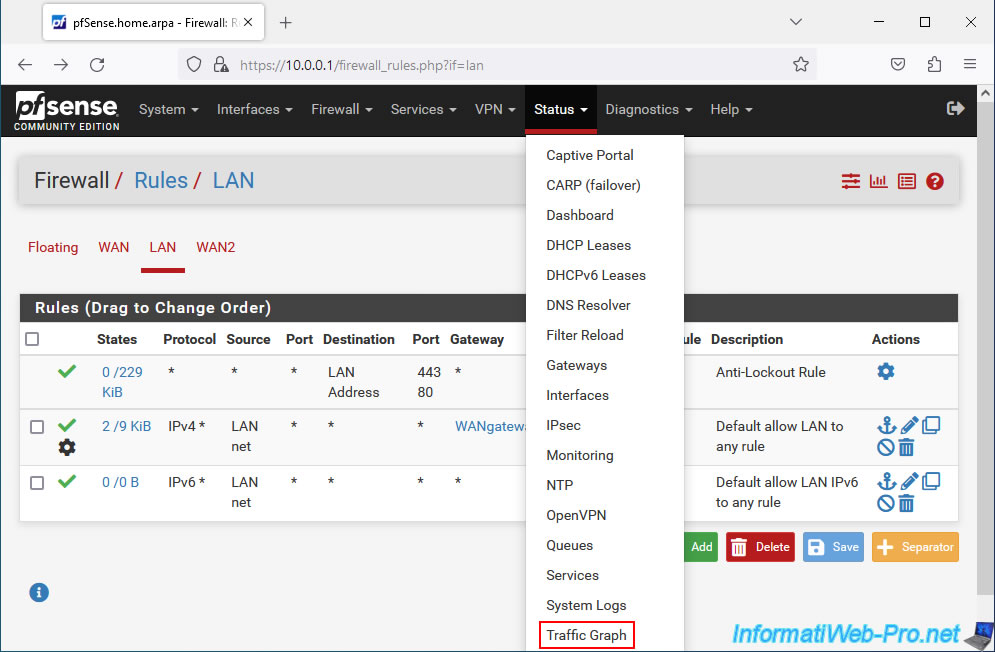

To see real-time graphs of network traffic for pfSense interfaces, go to: Status -> Traffic Graph.

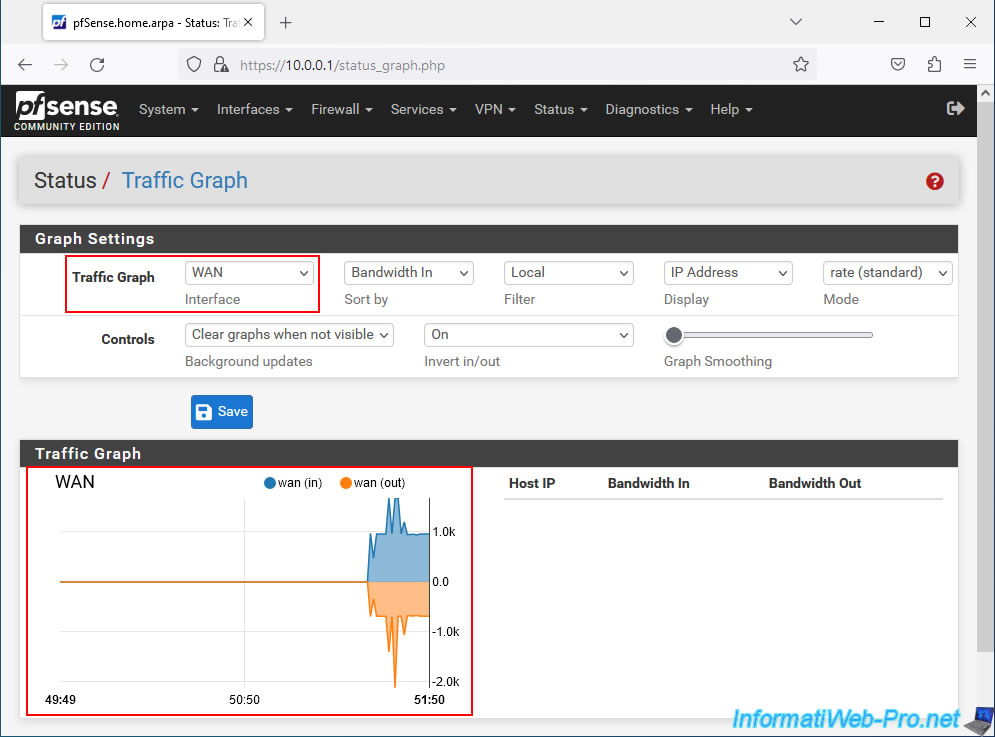

In the "Graph Settings" section, you can select the "WAN" interface for the "Traffic Graph" option, then click Save.
Then you will see the network traffic entering and exiting this interface (WAN) appear

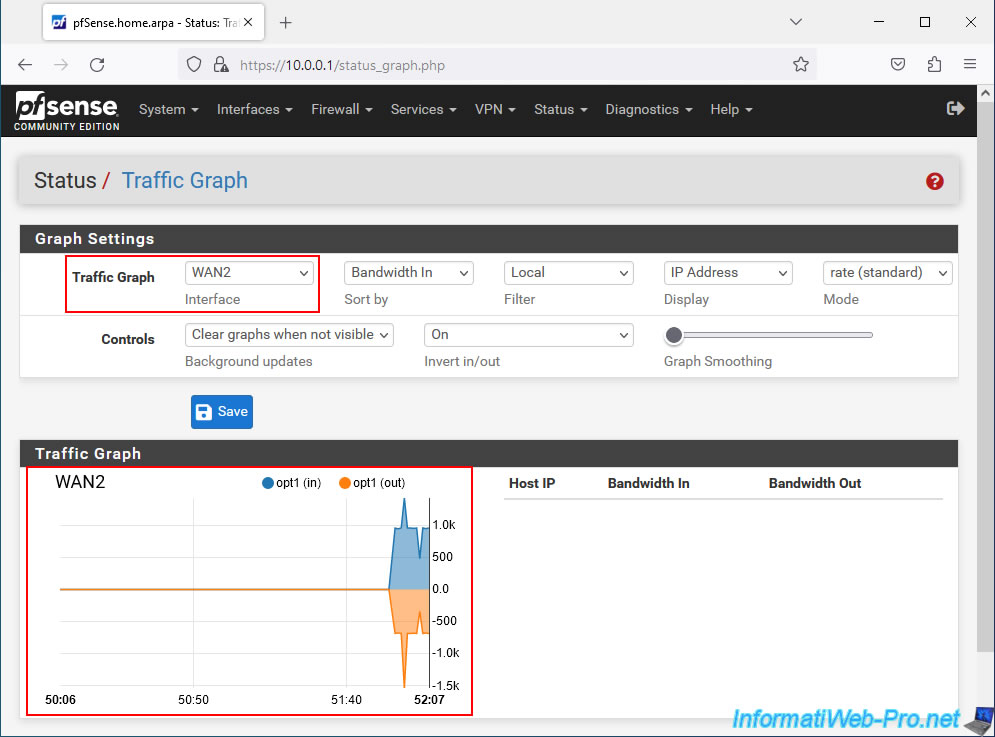

For the WAN2 interface, simply select "WAN2" for the "Traffic Graph" option and click Save again.
Network traffic for this WAN2 interface appears.

7. Add the Traffic Graph widget to see network traffic for multiple interfaces

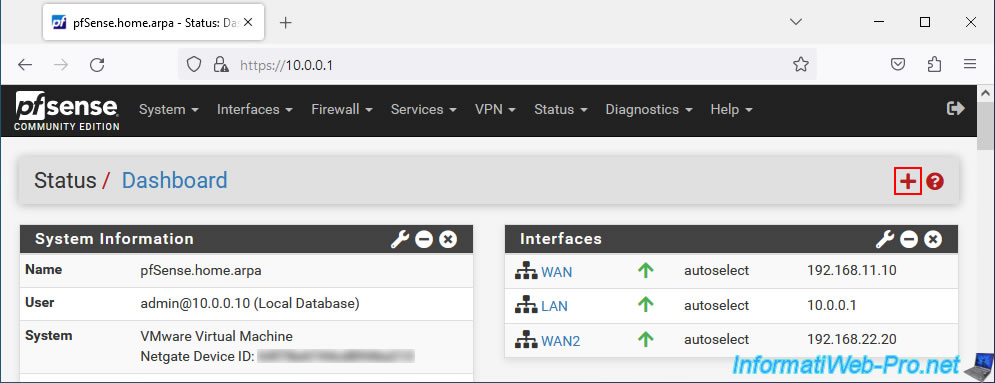

On the pfSense dashboard, you can add the "Traffic Graph" widget by clicking on the "+" icon located at the top right.

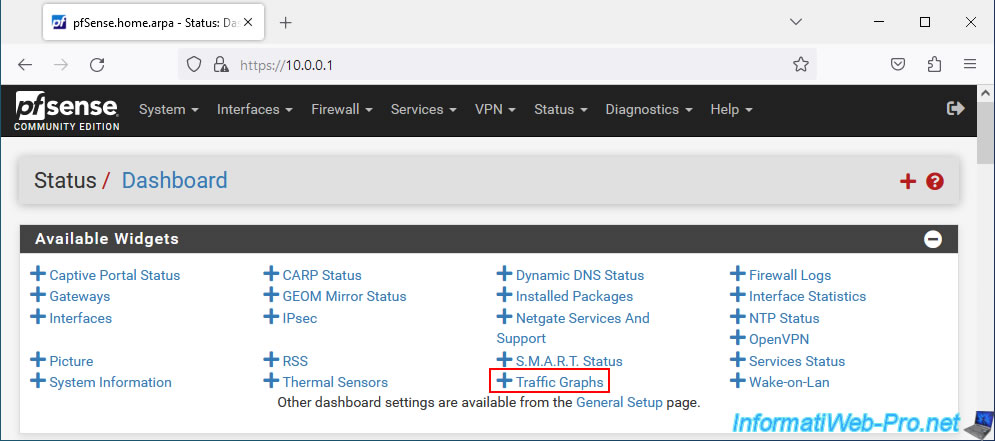

Then, in the "Available Widgets" section that appears, click on: Traffic Graphs.

By default, graphics appear for all pfSense interfaces.

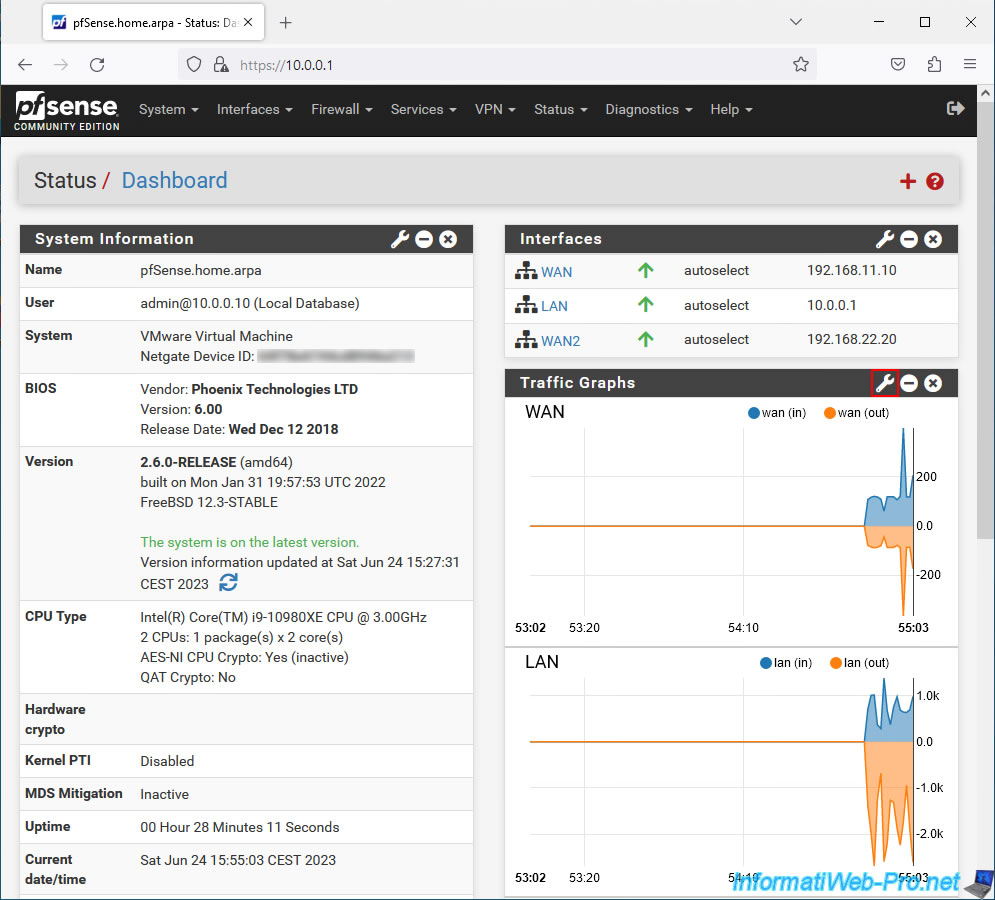

To view only network traffic from your WAN and WAN2 interfaces, click the small key in this widget.

Check the boxes for WAN and WAN2 only, then click Save.

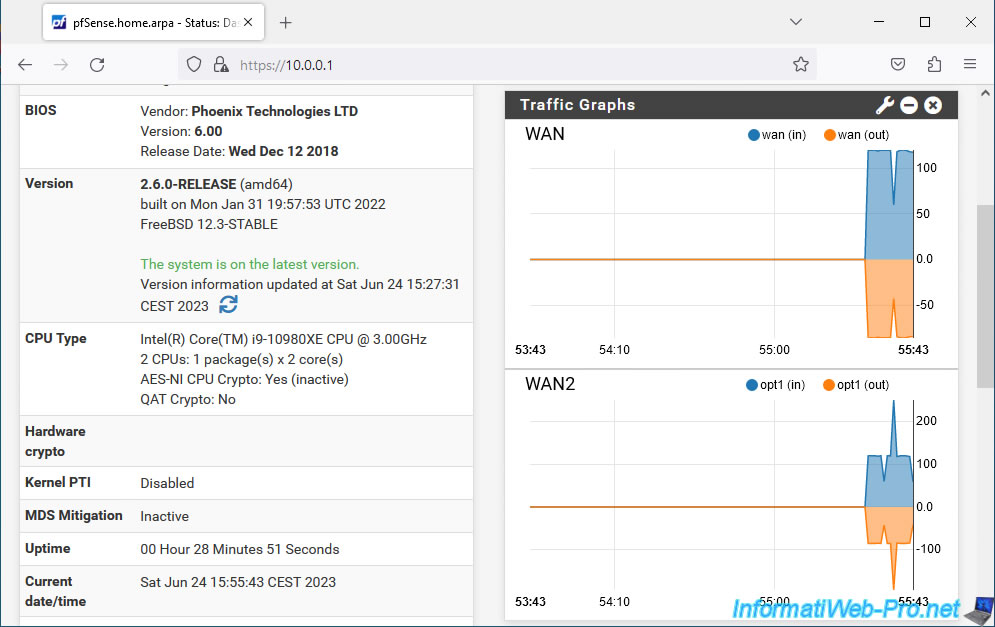

Now, you simultaneously see real-time graphs for network traffic entering and exiting your WAN and WAN2 interfaces.

8. Fault tolerance testing

To find out which WAN interface is used when you access the Internet from a machine on the pfSense LAN network, you can use the "tracert" command.
In fact, this allows you to know the network path taken to access a machine or a server.

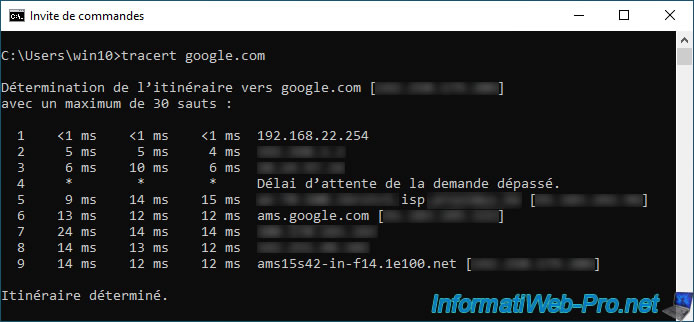

For the example, we used the "tracert" command to find out the path used to access the Google server.

Batch

tracert google.com

As you can see, the gateway "192.168.22.254" (which corresponds to the WAN2 interface of our pfSense machine) is used.

To test fault tolerance, we cut off the Internet connection from the WAN2 interface.

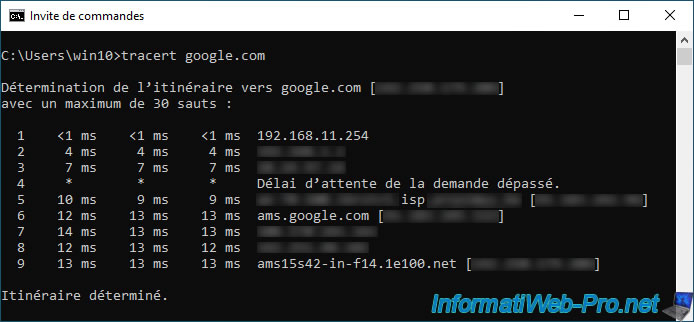

If we reuse the same "tracert" command, we see that the gateway used has changed.
This time, it is the "192.168.11.254" gateway (which corresponds to the WAN1 interface of our pfSense machine).
