Publish applications with 2X ApplicationServer XG

  • Parallels
  • 2X AppServer
  • 20 August 2012 at 16:21 UTC
  • InformatiWeb
  • 2/2
Previous page

3. Windows 64 Bits Client

The client software for "Windows" is compatible with 32 and 64 Bits.

Click "Next".

Click "Next".

Click "Install".

The client installs.

Click no, otherwise the Windows Welcome screen with the list of your users sessions no longer appear and you will have to login by entering your username / password manually.

Leave the box checked and click "Finish".

The client informs you that no 2X connection is configured, click "Yes" to configure it.

Click the "..." button next to "Main connection".

2X server is automatically detected. Select it and click OK.

Then, click OK.

A small window opens with a similar remote desktop Windows appearance. Specify a username / password of an account that is on your server and click "Connect".

It is possible that you voyer screen Windows Server login for the connection, then the screen returns to normal.
Once connected to the 2X server, you get a list of applications published on the server.

The application will run normally. The application is installed on the server and not the computer being used, the data are not in the same place. Go to "File -> Open".

Partitions named "Local Disk" are those of the server. This is logical since in relation to the application located on the server server partitions are local partitions. By scores against the client PC are mapped as network drives. These are the lines "X on SE7EN-PC" in the image.

4. Android client

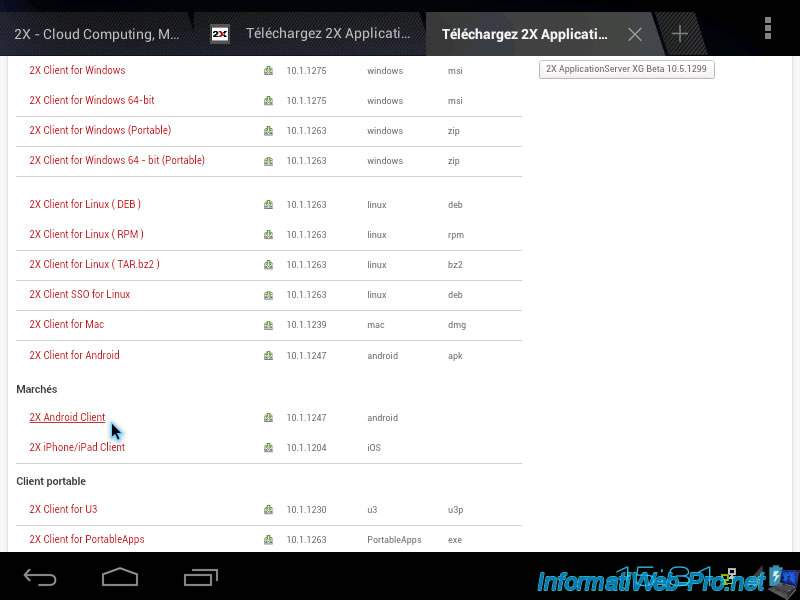

Go to the download page for "2X ApplicationServer XG" and click on "2X Android Client" in the category "Markets" ..

Click on "Market". It is possible that Play Store is displayed instead of "Market". It's the same thing.

Press "Install".

Press "Accept and Download".

Once installed, press "Open".

The Android client informs you that no 2X connection is configured. Press "OK" to configure it.

There are 2 possible types of connection:
- 2X connection : to connect to a 2X server. Allows you to use applications published on the server
- RDP connection : to connect to the remote desktop of Windows.

To configure an RDP connection, press "Connect RDP".

The parameters are :
- Alias ​​: Name that will appear in the list of configured connections on your Android.
- Server : IP address of the server where Remote Desktop is activated
- Port : The port used to connect to the remote desktop. The default port is 3389.
- Username / Password : a user account allowed on the remote PC for remote desktop.
- Connection mode : can be changed for 2X connections.

RDP connection is displayed. Press to test it.

By default, the 2X Client displays a summary of the default commands. Click Close. If you do not want to see this window, check the "Hide" box before pressing OK.

Desktop of the remote PC is displayed.

To disconnect, press "More" and press "Disconnect".

Then, to configure a connection 2X, press "Login 2X".

The parameters are identical to those of the RDP connection. As against, the connection mode may be changed. Let the default.

Your 2X connection is displayed. Press to test it.

The list of published applications from the server appears. Press an app to use it.

The application is displayed only on the screen.

To disconnect, press "More -> Disconnect".

By default, a 2X icon appears on the "Desktop" to launch the 2X Client application.
